Introduction

The HellermannTyton weighing system integrates the APP on tablet with computer. Aiming at “Smart workflow” purpose, it focus on achieving the exact check-weighing standard, strict administration management, order serial number generation and precise timer function.

The HellermannTyton weighing system takes advantage of wireless data transmission to help users get rid of the limits of traditional hardwares and it also offers a solution of better movability and portability.

The HellermannTyton weighing system accomplishes the 3 shifts timing to auto-export all weighing histories via email for better work management and trace.

Customer profile

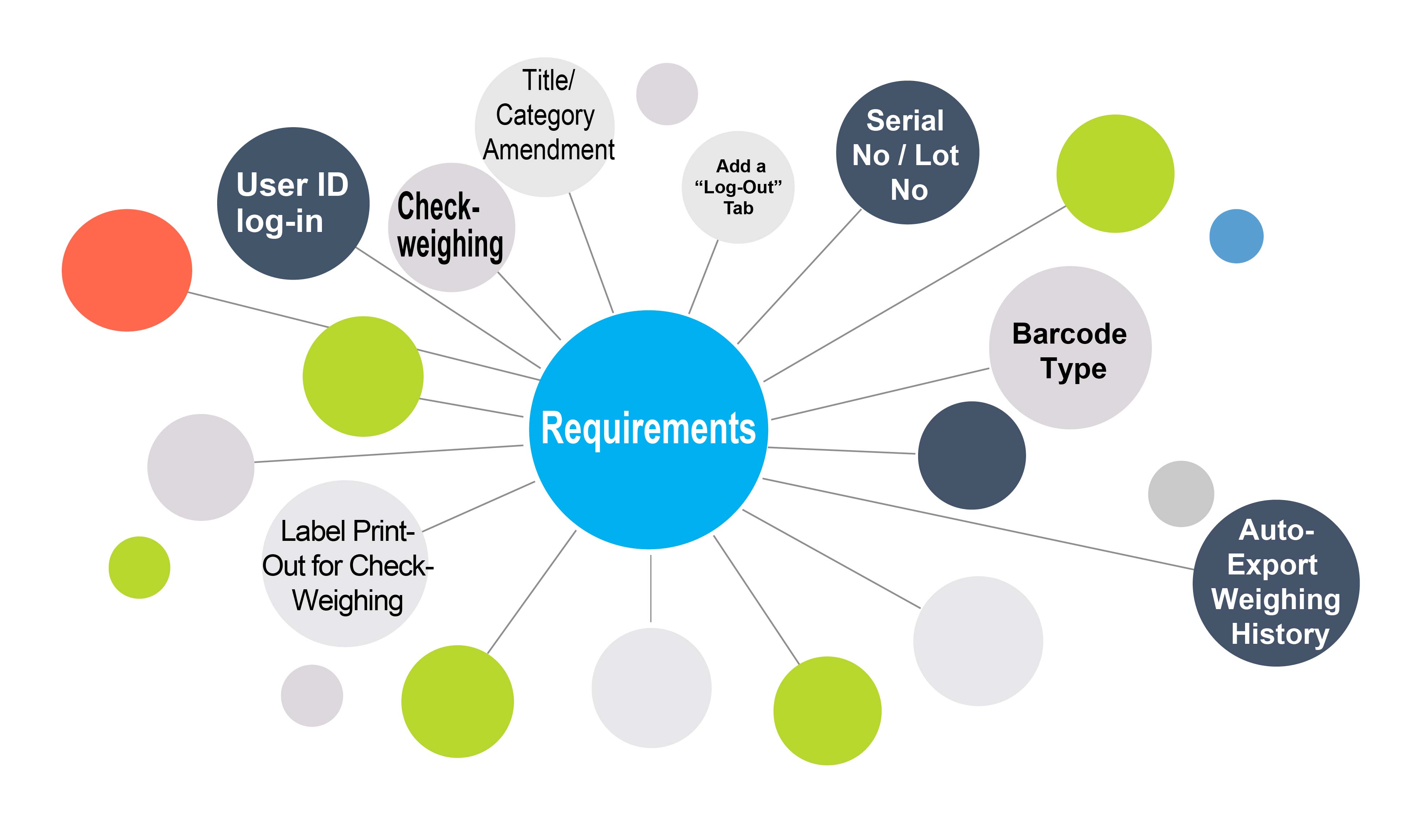

HellermannTyton is one of the leading suppliers of products for fastening, fixing, identifying and protecting cables and their connecting components. Regarding to their complex workflow which likes printing labels, reading barcode, checking-weighing and different levels of administration, an efficient, easy managing operation system is needed.

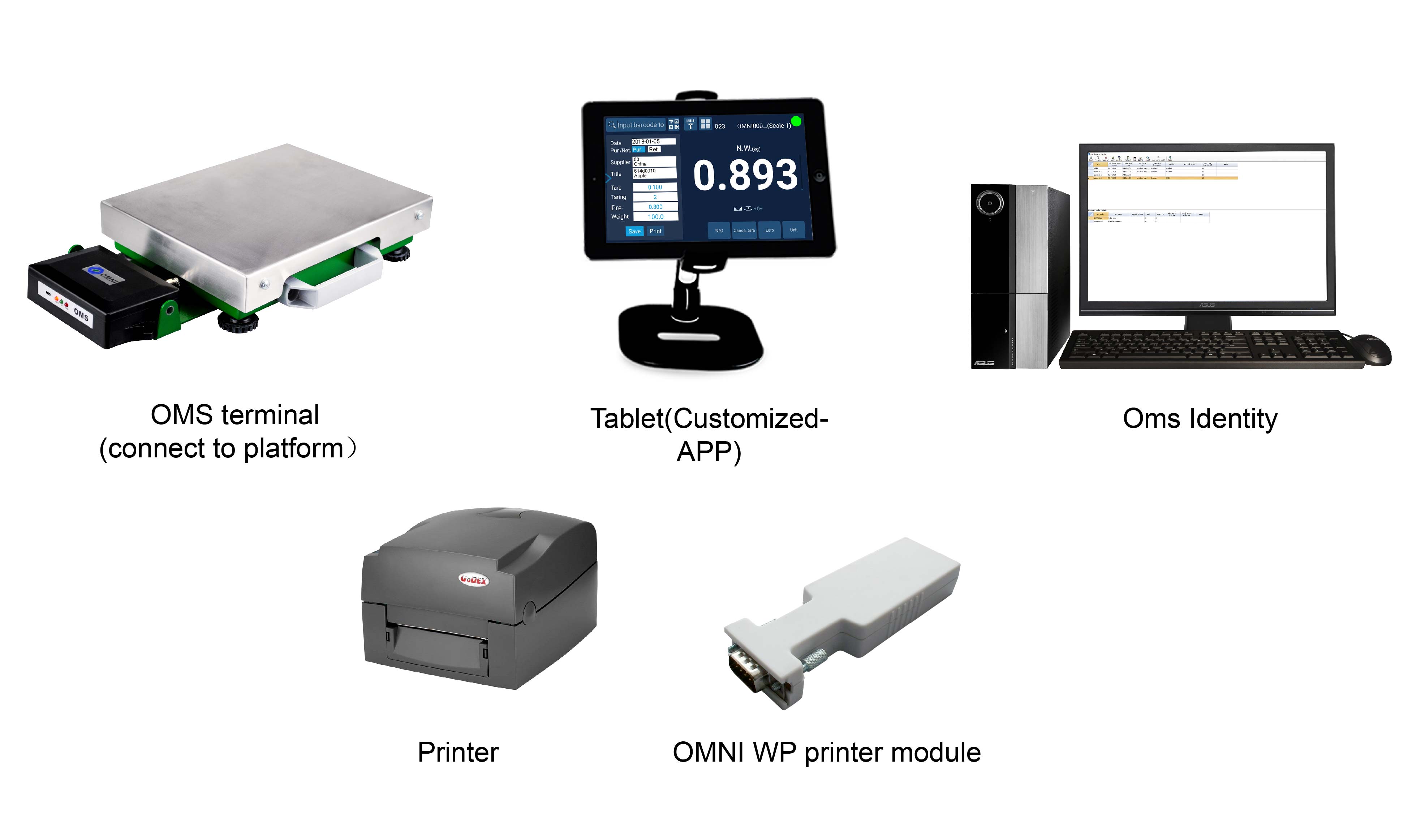

Equipments needed

Operations of the work flow

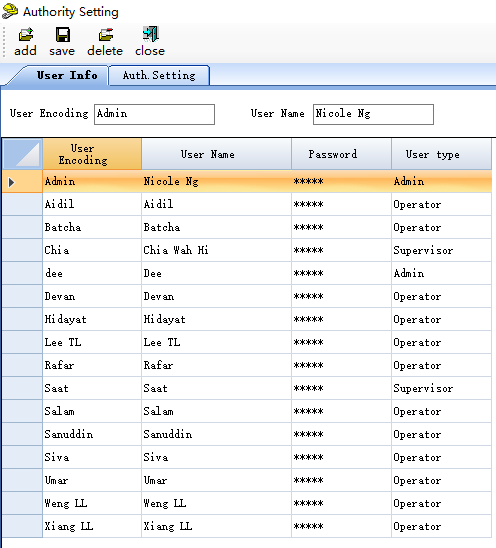

1. Create three accounts of Admin, Supervisor, Operator on OMS-Identity.

For Example: Below are accessing founction interfaces of “Admin”(History, Label, UNS(P), Weight, Count, Four Scale, Setup, Devices, More, Exit） and “Supervisor” (With less setting permission)

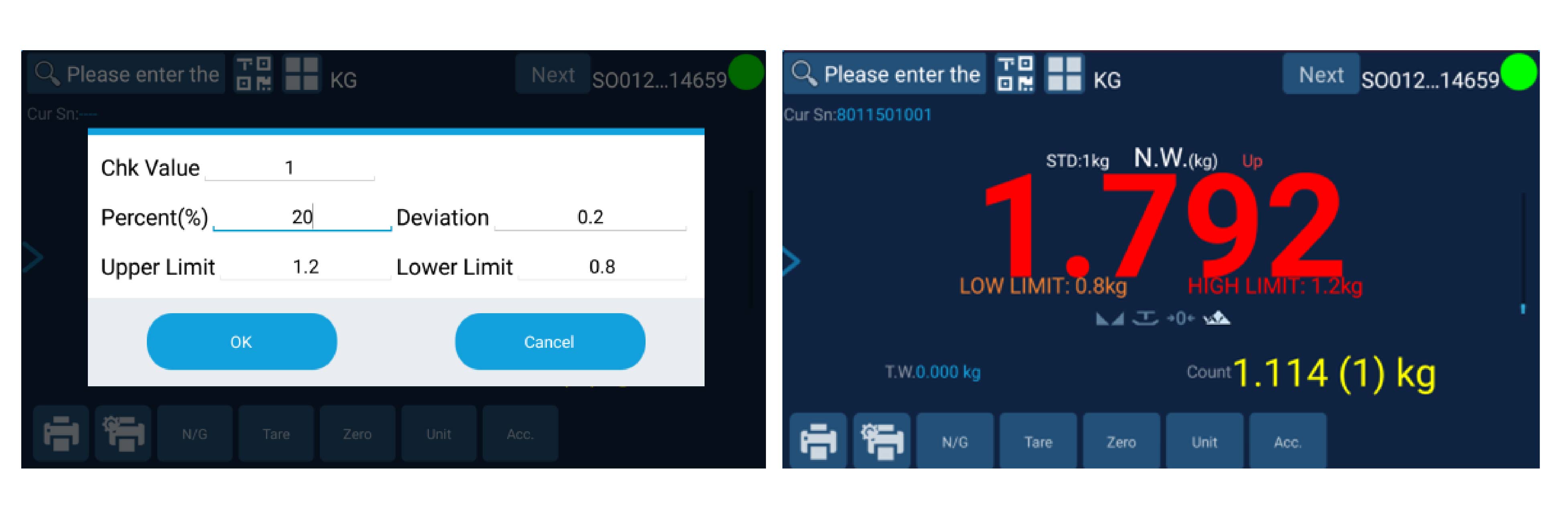

2. Set the weighing variation range, then it'll display “LOW LIMIT&HIGH LIMIT” as below on the weighing interface. And the weight values on tablet will display different colors according to the check-weighing limits (Low-Orange, OK – Green, Over – Red).

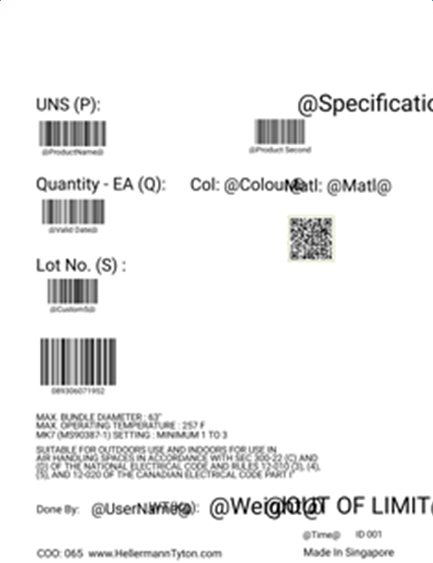

3. The system will accumulate automatically once the weight value is stable, then you can print it by using customized label template as below:

4.Click on“Logout”tab at the lower right corner to exit current account. Also you can swipe NFC card to switch account.

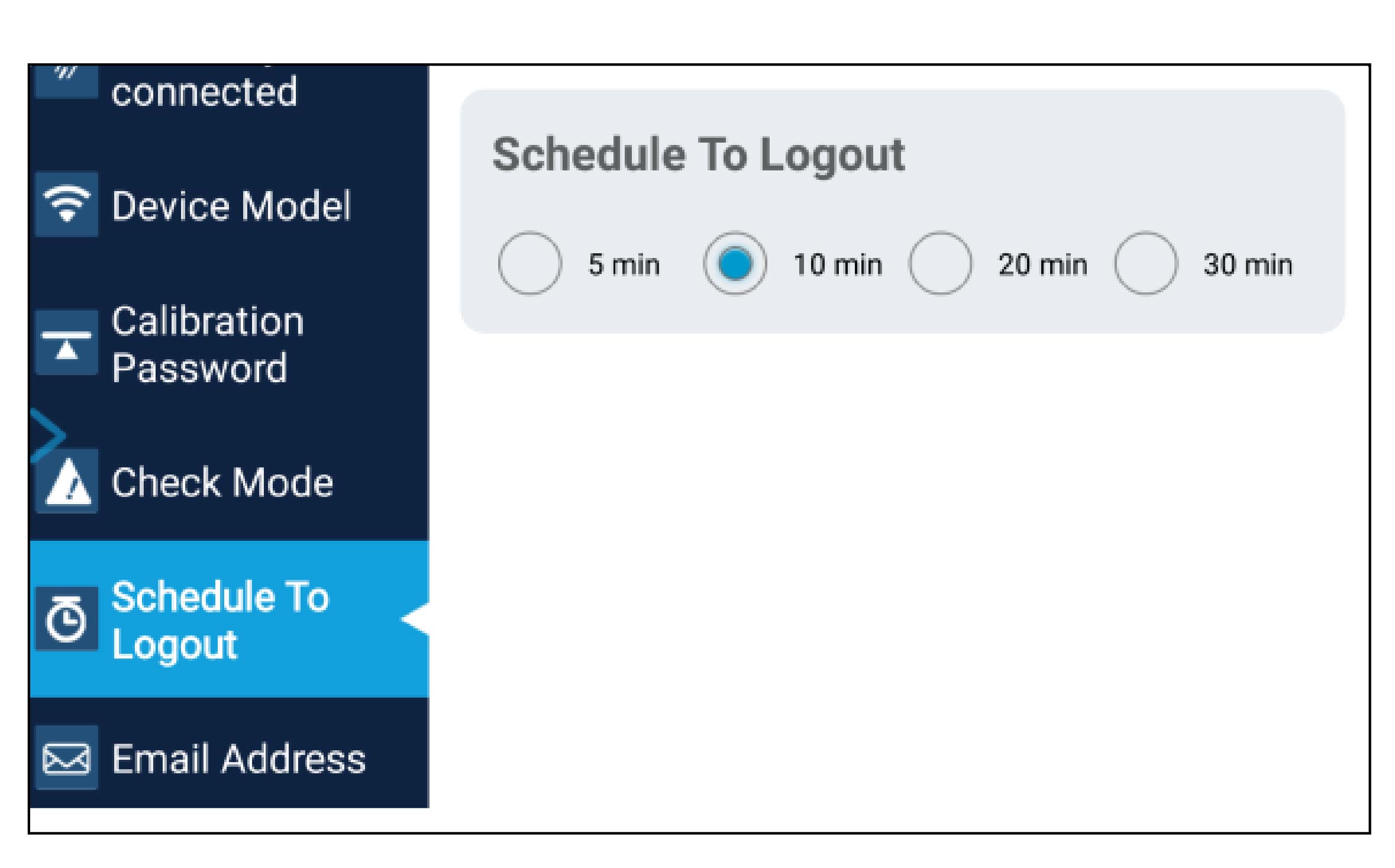

User can set the auto-logout timer schedule to log-out when no activity is detected.

For example : Time schedule set as 5mins, 10mins, 15mins or 20mins

(User defines the timing )

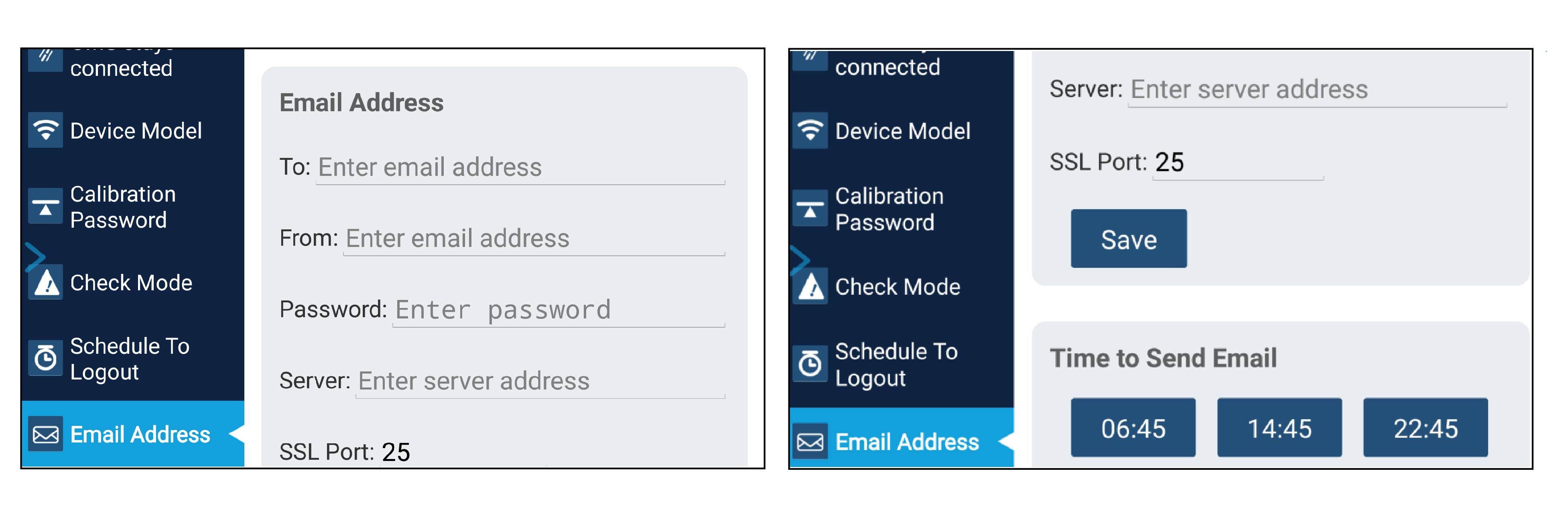

5. User can set the receiving email address and sending time, App will auto-send the weighing histories to the specified email address according to the time schedule.

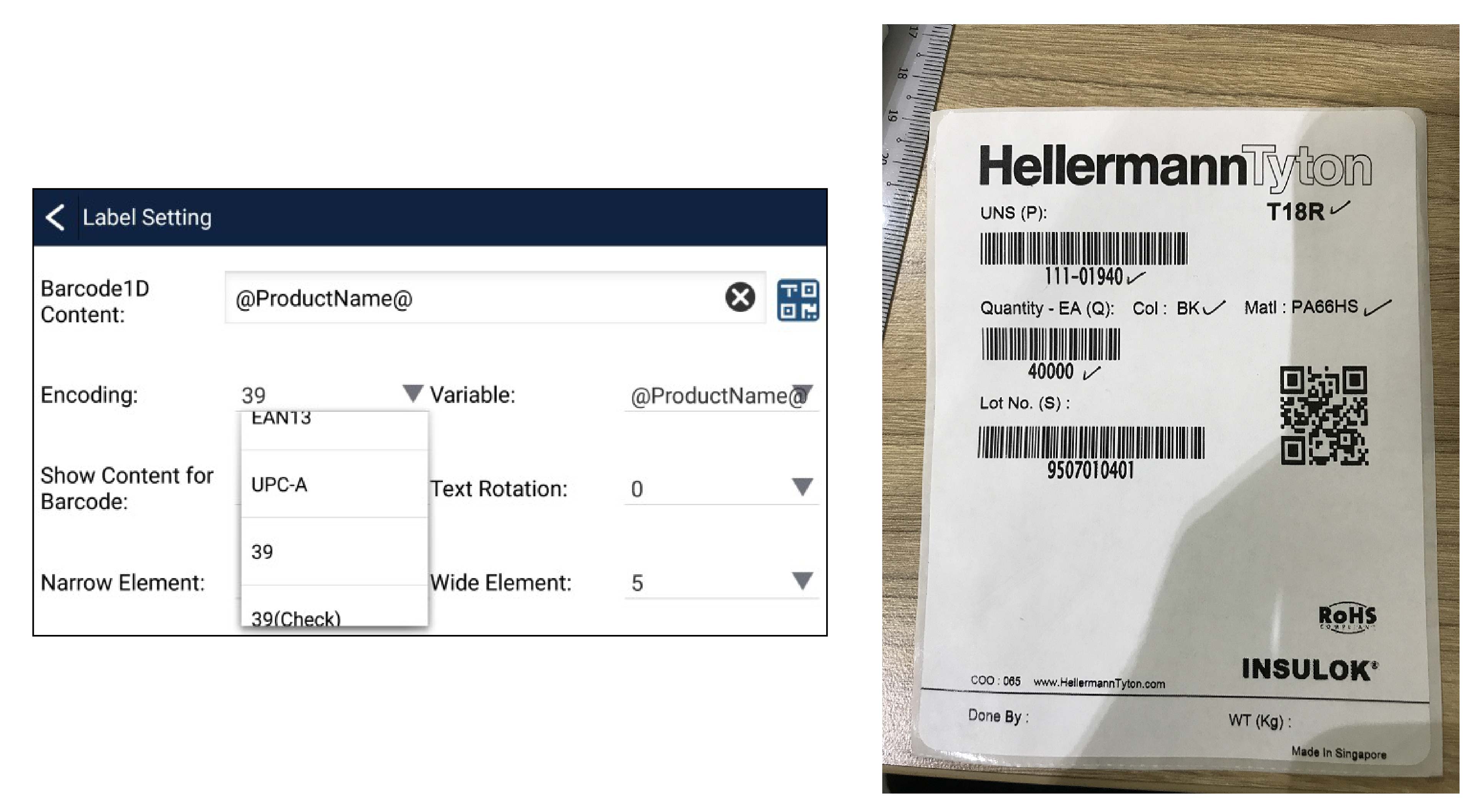

6. Adding more Barcode types for choice as below.
