Large LCD weighing instrument functions
Built-in Printer; Accuracy and weighing capacity can be set according to different needs;

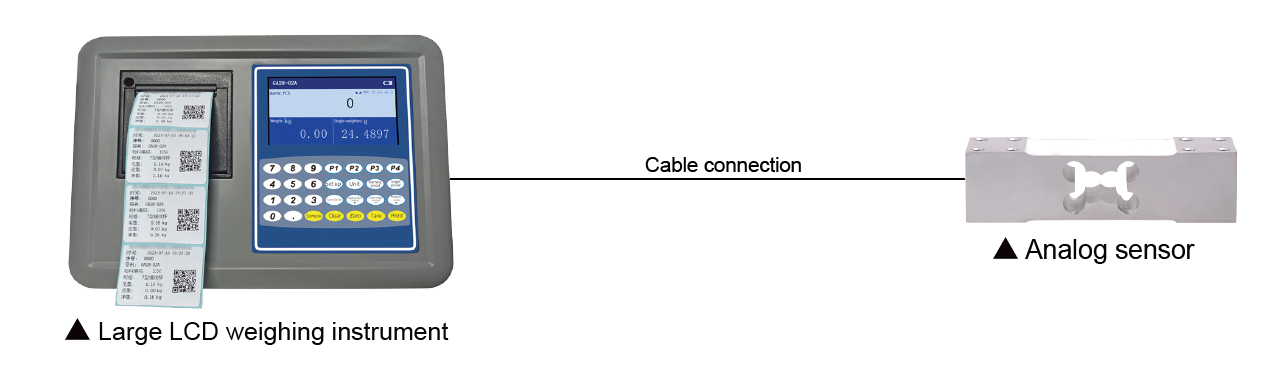

This display can be connected to 1-8 350 ohm sensors;
Possibility of single-point and multi-point calibration to ensure accuracy;
Automatic averaging function for more accurate single weight values;
With weight and quantity checking function and a set of memory functions;
With cumulative weight and quantity function and with stroke-by-strokedisplay and elimination;
With single weight memory function, 20 single weights can be saved;
lt has the function of adjusting the zero point automatically;
With software filtering function, the response speed of weighing can beadjusted according to the use of different environments;
Rechargeable and plug-in modes for choice, eliminating the trouble ofunstable power supply and power failure;
It can be connected with computer, thermal label printer and three-colour warning light.
Customized services are available to your actual needs!
Large LCD weighing instrument parameters
Input sensitivity: 0.13μV/div.
Input voltage range: -0.5mV~16.5mV.
Sensor excitation voltage: DC 5V; up to 8 pieces of 350 Ω sensors.
Non-linearity: 0.003% of the total scale capacity.
Power adapter: 12V/3A.
Battery specifications: Two specification3,7V lithium batteries conncctod in series.
Input impedance: More than 10×106 Ω.
A/D conversion mode: △-∑.
A/D internal resolution: 700,000.
A/D conversion output cycle: About 8 times per second.
Exterior AD accuracy: 15000.
LCD display digits: 6/5/6.
