Feature

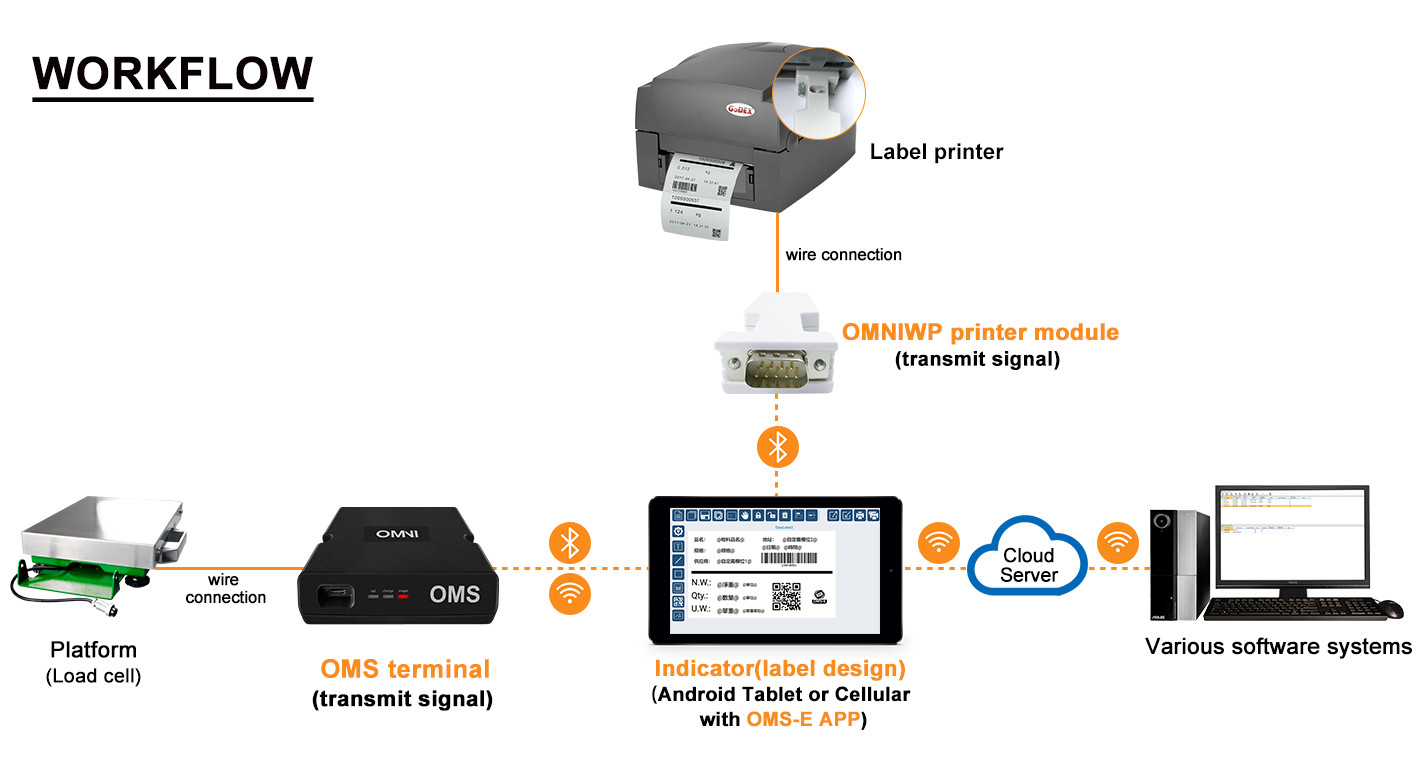

Use with OMS transmitter + oms-e app or OTSB Bluetooth module + scale wizard app. Wireless printing can be realized by connecting Bluetooth with app (oms-e, scale wizard), designing label on app, and plug in printer module WP into printer RS232 interface

Main functions

1，It receives data from mobile phone or tablet via Bluetooth 4.0 of low power consumption with stable signal and wide receiving range.

2，It can connect the printer with RS-232(DB-9) interface to realize wireless printing. The printers are shareable and cost saving.

3，It uses a micro USB interface for power supply,hot-pluggable, plug and play.

4，Tiny and portable, easy to carry.

Printer description

Compatible with all printers with RS-232(DB-9) serial port. Cooperative printer brands: GODEX, gprinter Jiabo, TSC, etc

Specification

Name: Printer module OMNI-WP

Type: First generation

Material: ABS housing

Dimension: 110x34x17mm

Transmission distance: 30m
