Features

WR works together with mobile, tablet and OMS as an external device of OMS.

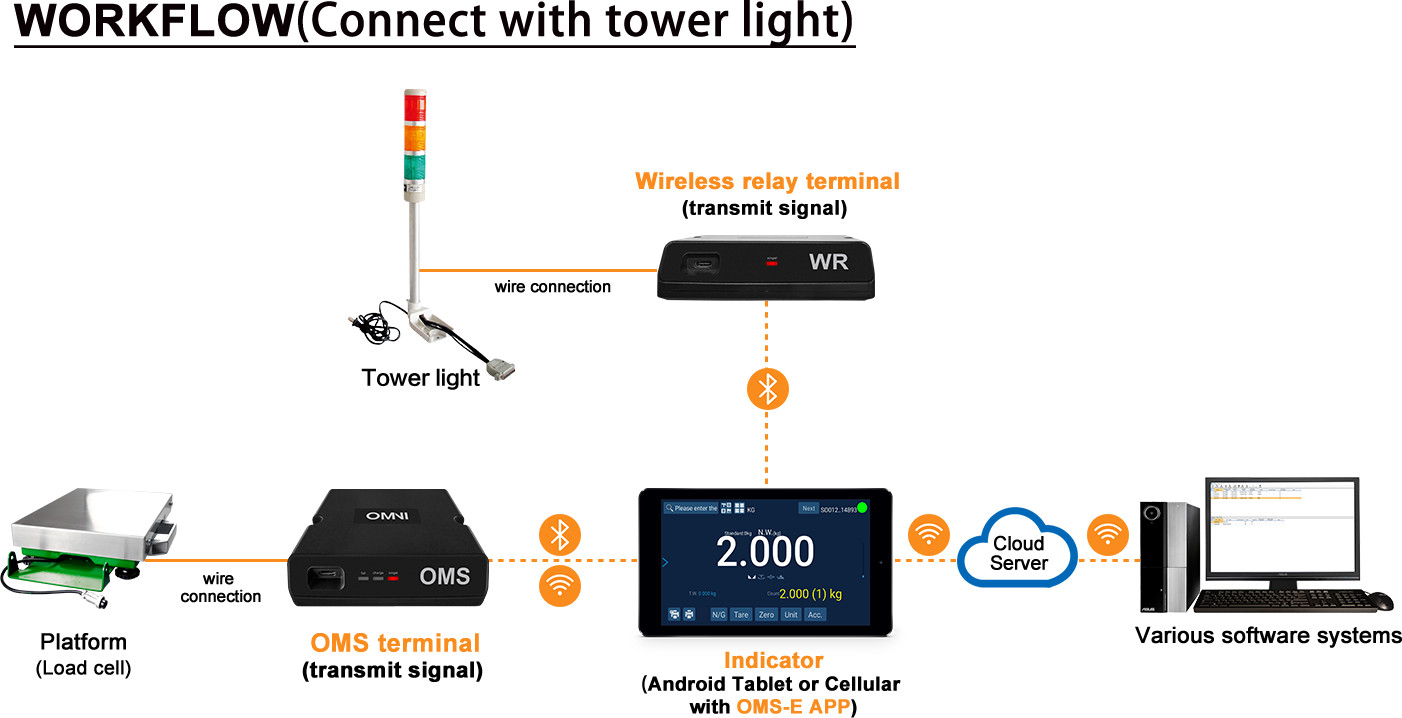

Enable to connect with alert light to realize calibration alert.

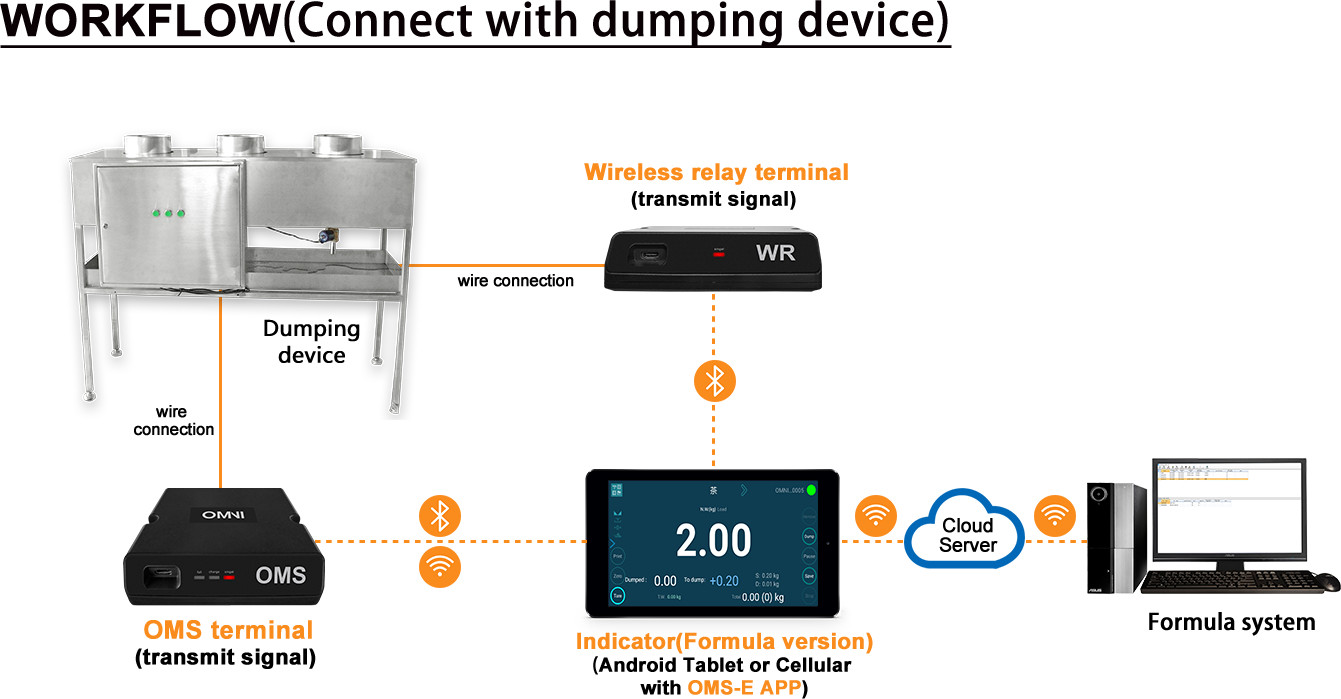

Enable to connect with dumping device to realize automatic control of loading and dumping.

Configuration

1.Transmit data via low power consumption bluetooth4.0 between mobile and tablet, stable signal and wide receiving range, more power saving, more flexible, and advanced.

2.Large capacity lithium battery power supply.

3.Two modes of charging: Storage and plug; avoid any trouble caused by unstable power or power failure.

4.It can control four switches of external devices.

5.Less device interfaces with strong Anti electromagnetic ability.

Notes

1.Avoid using in the metal or other shielding situation.

2.Please warm the device for 5min before first time using.

3.Please fix the interface and wire when connect to any external alert light or other device. Do not drag or pull the WR interface.

4.Best signal in 30m.

Specification

Name：WR

Model： Second generation

Material：ABS housing

Size：114x105.6x30.5mm

Transmission distance：30m

Bluetooth module：low power consumption bluetooth 5.0

Charging time：6hours

Power specification：Adapter:5V / 1A
