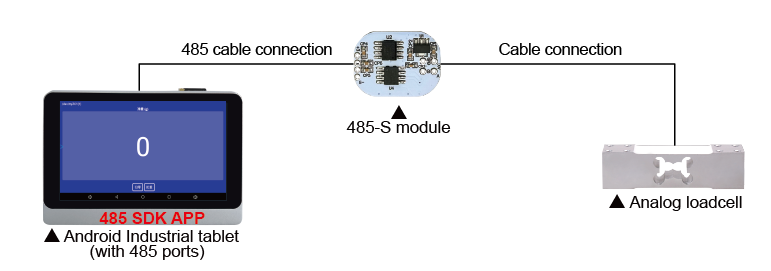

The 485-S module with 485 SDK APP enables the Android industrial tablet.

485 SDK function

Weight; capacity setting; calibration; filter setting; internal code value; booting zero; weighing unit.

Customized services are available to your actual needs!

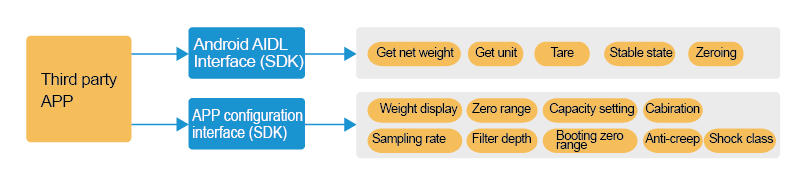

Second development architecture

485-S module parameters

For your SDK second development / integration / data acquisition / monitoring.

Provide complete communication protocol and test software.

Communication mode: RS-485.

Communication protocol: MODBUS / General protocol.

AD sampling rate: 10/80Hz.

Data returning rate: 25Hz.

Input range: -2mV-20mV.

AD: 24 bit.

Accuracy: 30,000.

Excitation voltage: DC 3.3-18V.

Communication specification: Default 115200 Baud rate(able to be modified), 8 data bits, 1 stop bit, no odd-even check.
