Application fields:

intelligent storage system, garbage sorting, vending machine, intelligent production, intelligent agriculture, intelligent breeding, PC scale, coffee machine, etc.

Capacity:30kg (customizable)

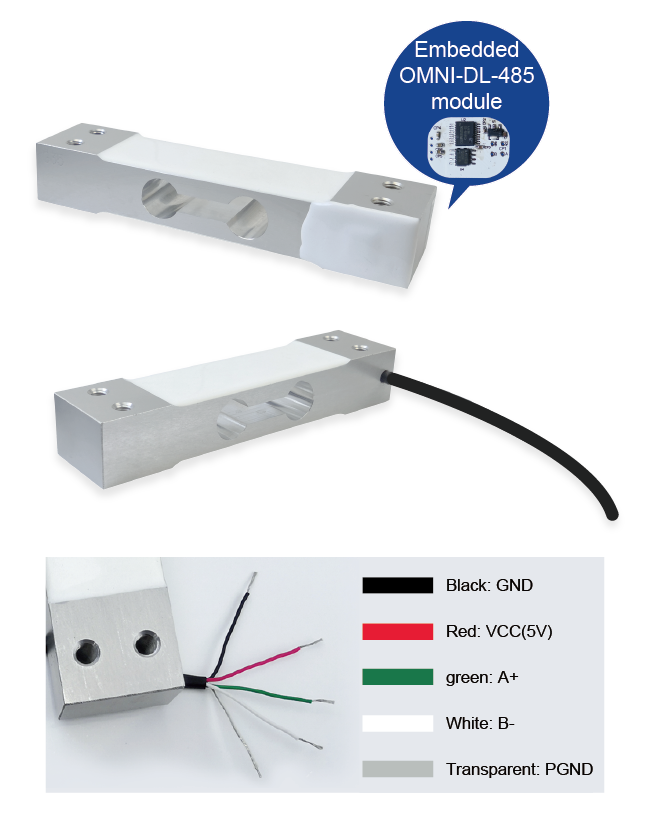

Product architecture:

Product parameters:

Data rate: 10 / 80 times / second

Communication mode: RS485 half duplex

Communication speed: 2400～115200bps

Max connecting quantities: 110

Rated Output: 2.0 mV/V±10%

Zero Balance: ±0.0200 mV/V

Non-linearity: 0.02 %R.O.

Hysteresis: 0.02 %R.O.

Repeatability: 0.02 %R.O.

30mins Creep: 0.02 %R.O.

30mins Return: 0.02 %R.O.

Safe Overload: 150 %R.O.

Ultimate Overload: 200 %R.O.

Temperature Effect On Output: 0.002 %R.O./℃

Temperature Effect On Zero: 0.003 %R.O./℃

Input Impedance: 410±15 Ω；1130±30 Ω

Output Impedance: 350±5 Ω； 1000±10 Ω

Insulation Impedance: ≥5000 MΩ/(50VDC)

Working voltage: 5~9 VDC

Operating Temperature Range: -20~60 ℃

Construction: Aluminum Alloy

Protection Class: IP66 / IP67

Cable: φ4×0.5m
