Wireless loadcell function:

Wireless loadcell has the advantages of low power consumption, ultra long distance wireless transmission, simple deployment, high sensitivity, long battery life, etc.

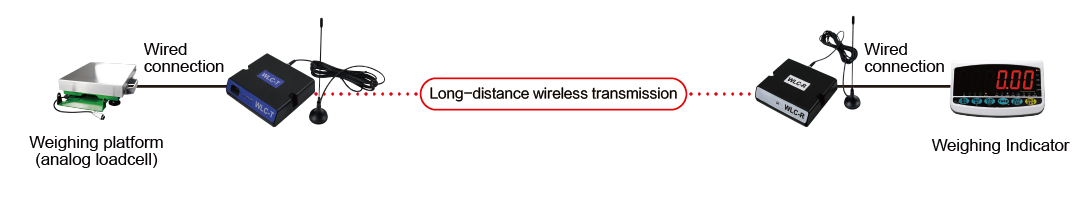

It is used by WLC-T and WLC-R networking, and can wirelessly transmit the analog signal of the weighing analog sensor to the weighing Indicator.

Suitable for platform scale, truck scale, etc.

WLC-T: Connect the weighing analog loadcell through the signal line, convert the analog signal into wireless signal and send it out.

WLC-R: Connect the weighing Indicator through the signal line, receive the wireless signal sent by WLC-T and transfer it to the weighing Indicator.

Networking mode:

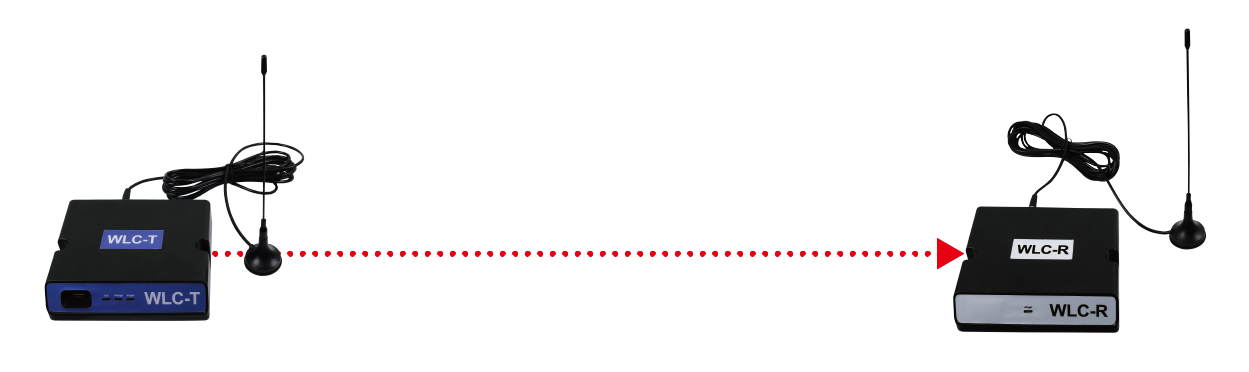

One-to-one mode

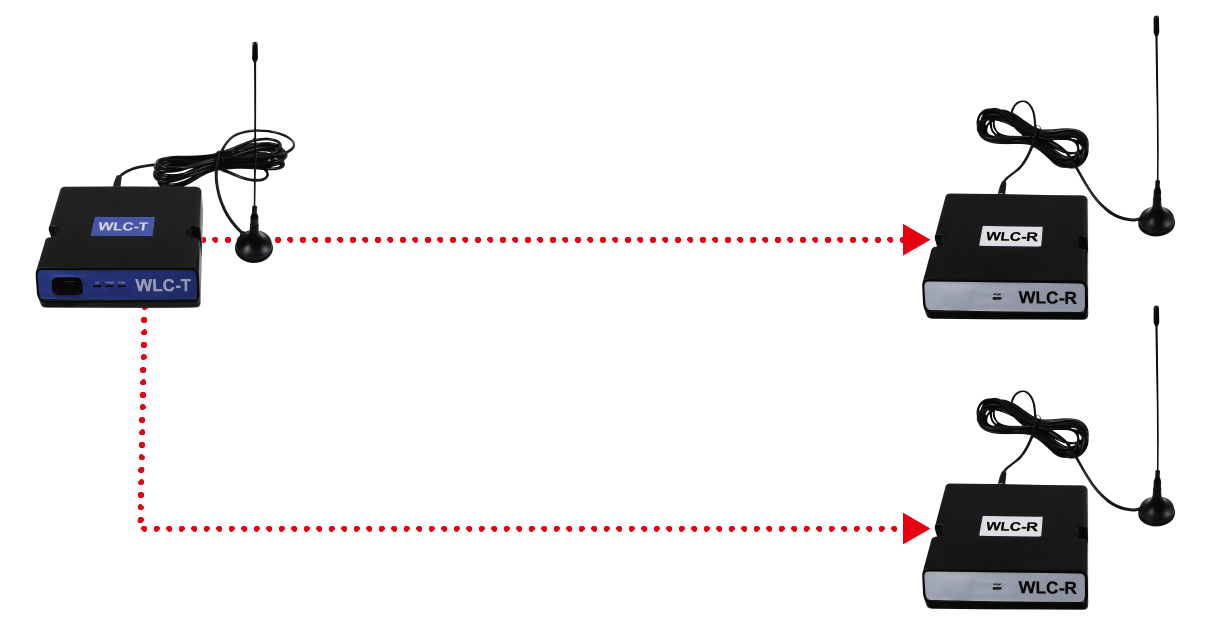

One-to-many modes

Wireless loadcell product parameters:

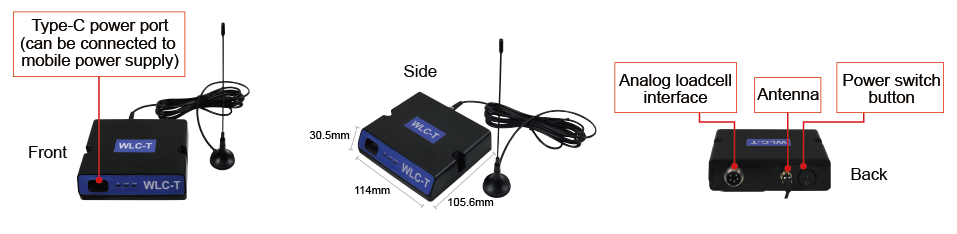

WLC-T

Input voltage: DC5V / 1A

Built in 3.7v/2000mah lithium battery

Radio frequency: 470MHz

Provide excitation voltage: 5V

Charging time: 6 hours

Sending distance: 5000m (open space)

Battery life: connected to a single 330 Ω analog sensor, it can be used for 50 hours (supporting high-precision sensors)

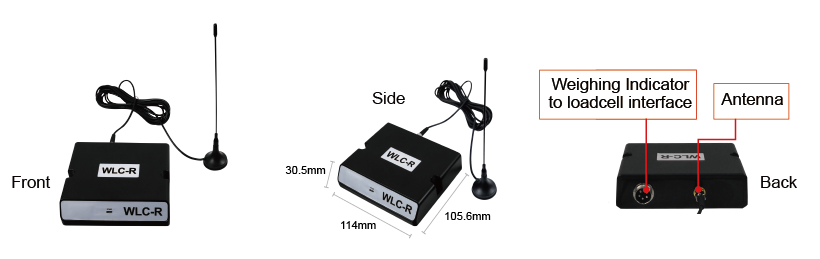

WLC-R

Current supply of weighing Indicator: over 75mA

Radio frequency: 470MHz

Communication distance: 5000m (open space)

Power supply voltage range of loadcell interface of weighing Indicator :DC 5V
